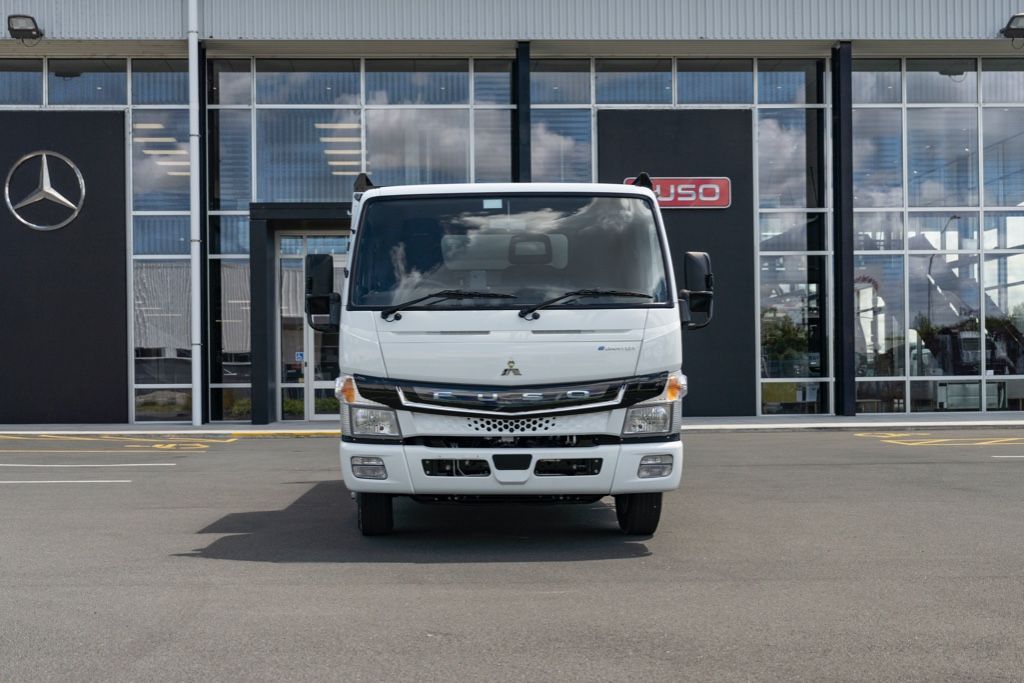

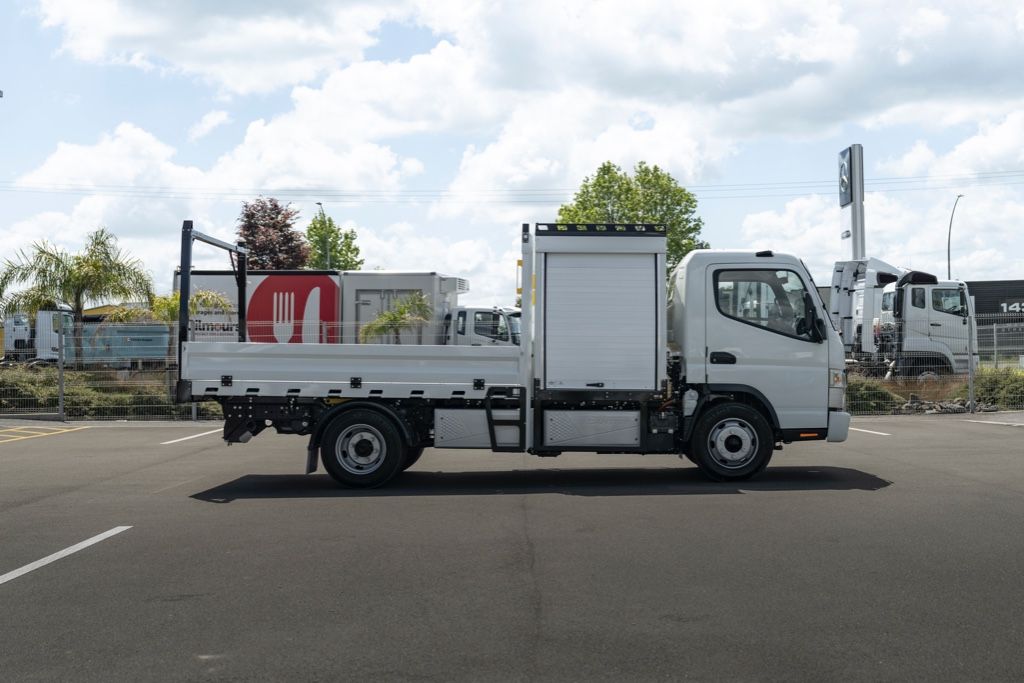

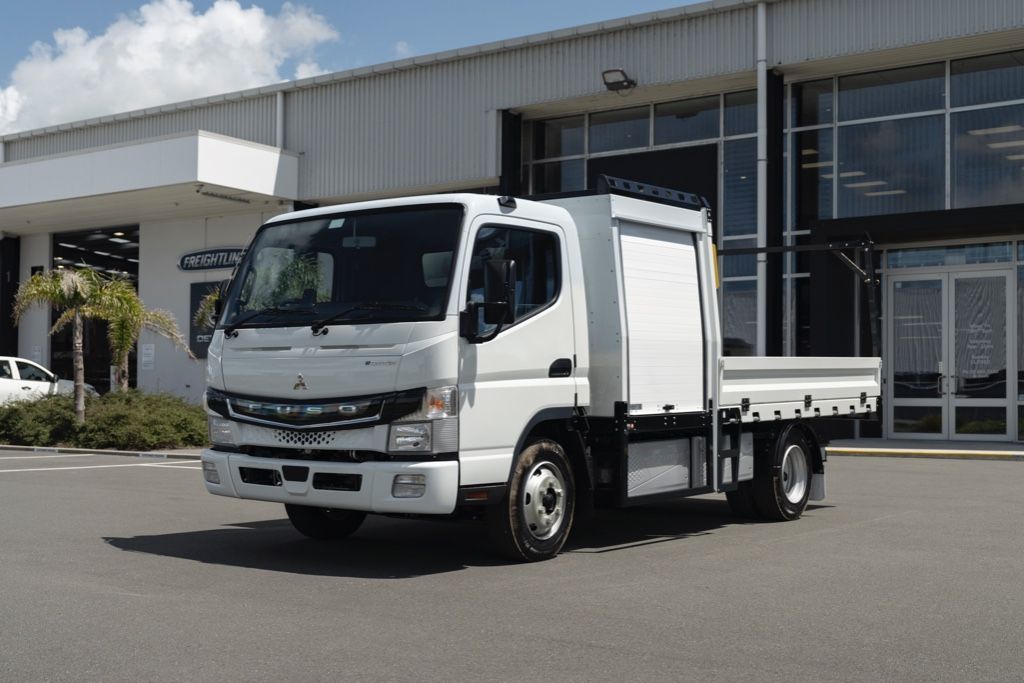

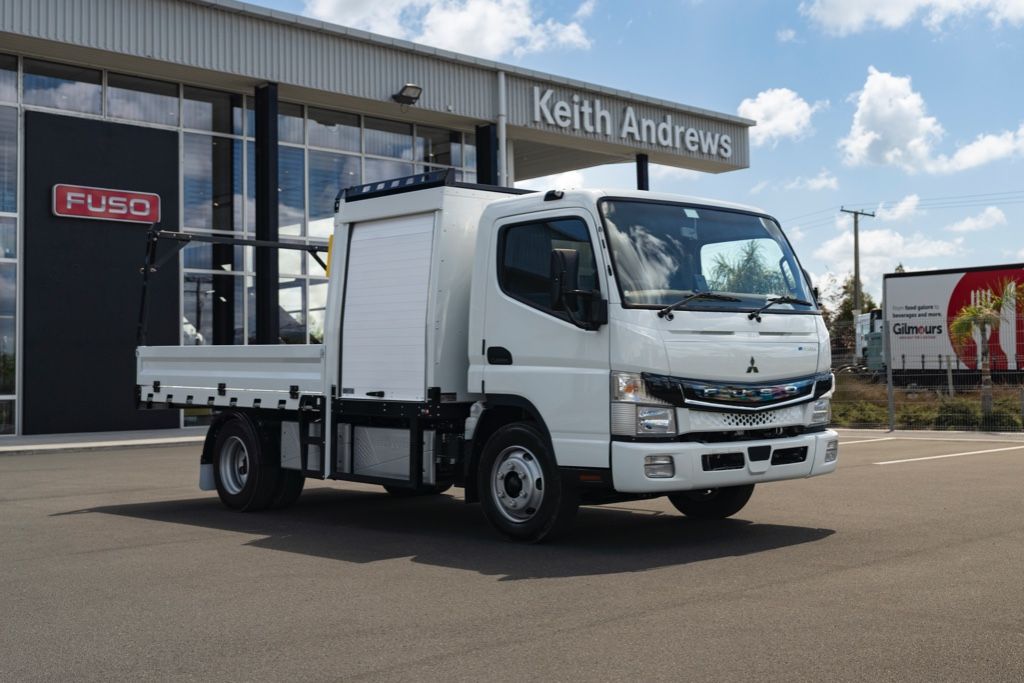

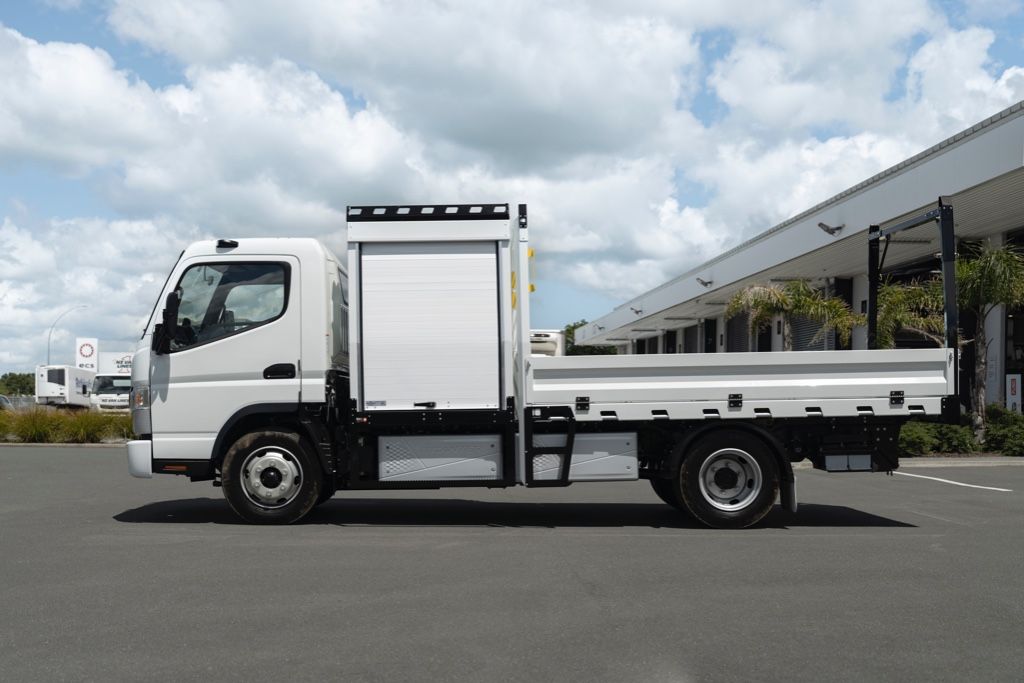

2024 eCanter Electric Toolbox Tipper - 100% EV
Description
Canter 8 - 100% Electric
Power: 135KW
Torque: 390Nm
Battery: 81kWh lithium ion
Configuration: 4x2
Wheelbase: 3,400mm
Highlights:
81kWh lithium ion battery
100km-150km range (depending on the operating conditions)
80% charge in 45mins
Advanced safety features:
Active Emergency Braking System
Lane Departure Warning System
Electronic Stability Control

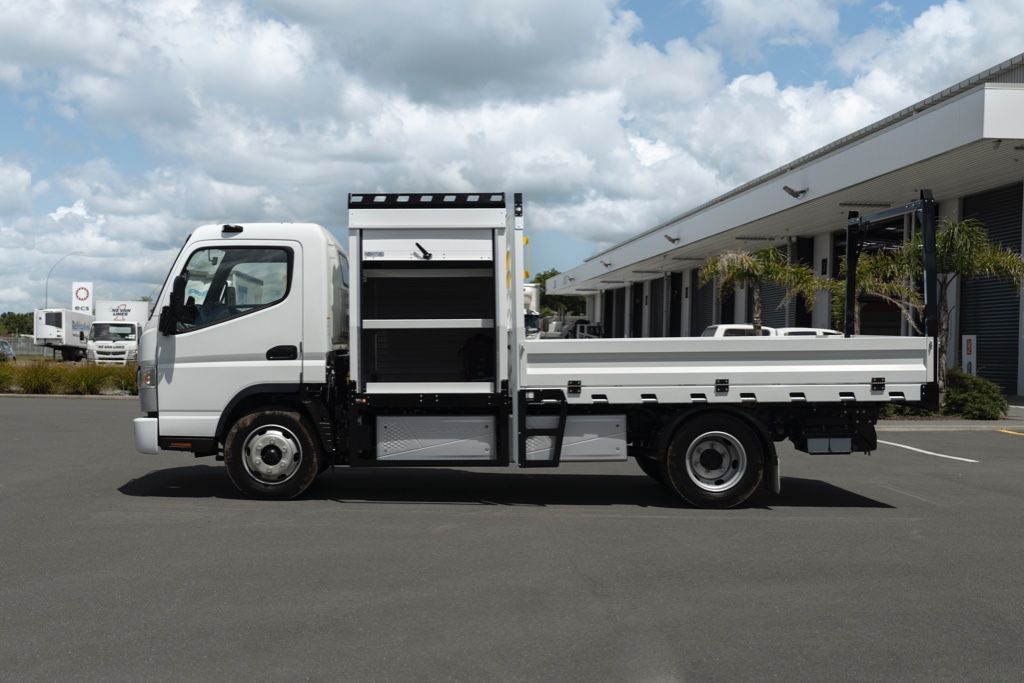

Workbox:
3.0mm aluminium work box, 1200mm long x 1450mm high x 2200mm wide, slam lock - Robinson roller shutter doors with two open lock positions with top door stoppers for finger crush prevention – (note: minimal tension on doors).
• 2 x full width shelves with 75mm upstand.
• Vertical center divider between the floor and 1st shelf of the workbox.
• Nonslip rubber matting on the floor and shelves.
• Fixed mounted roof racks protruding over cab roof with tie downs & beacon light mounting - mounted to correspond with H / rack & protection for cab light bar.
• Stainless steel protection capping on both LH/RH lower edge.
• 4 x LED strip lights.
• In cab warning light & buzzer showing roller doors open when handbrake released.

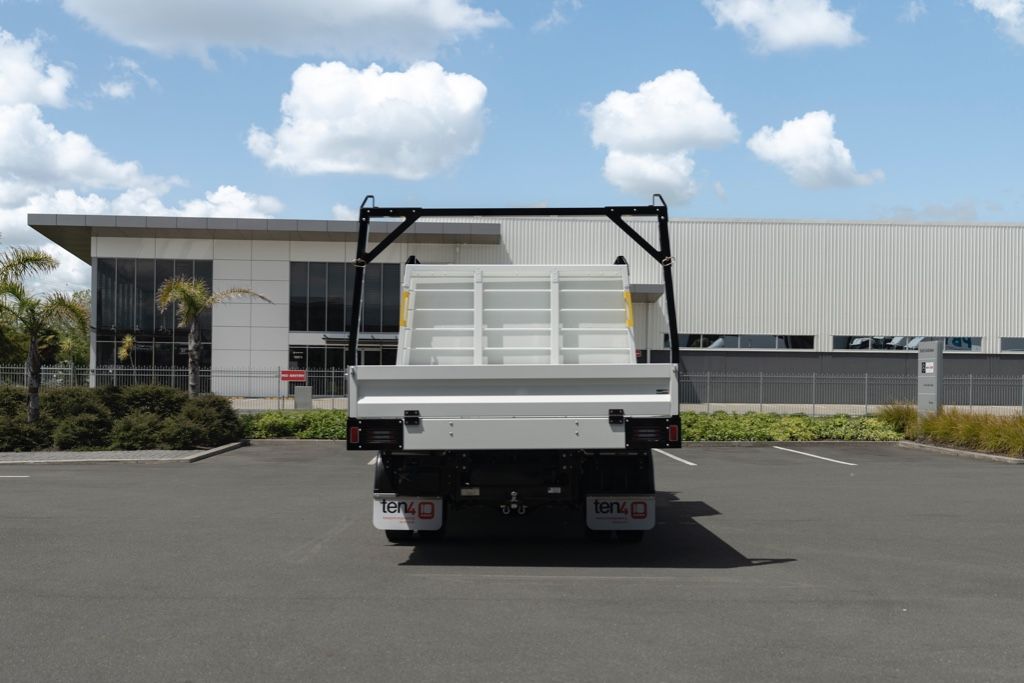

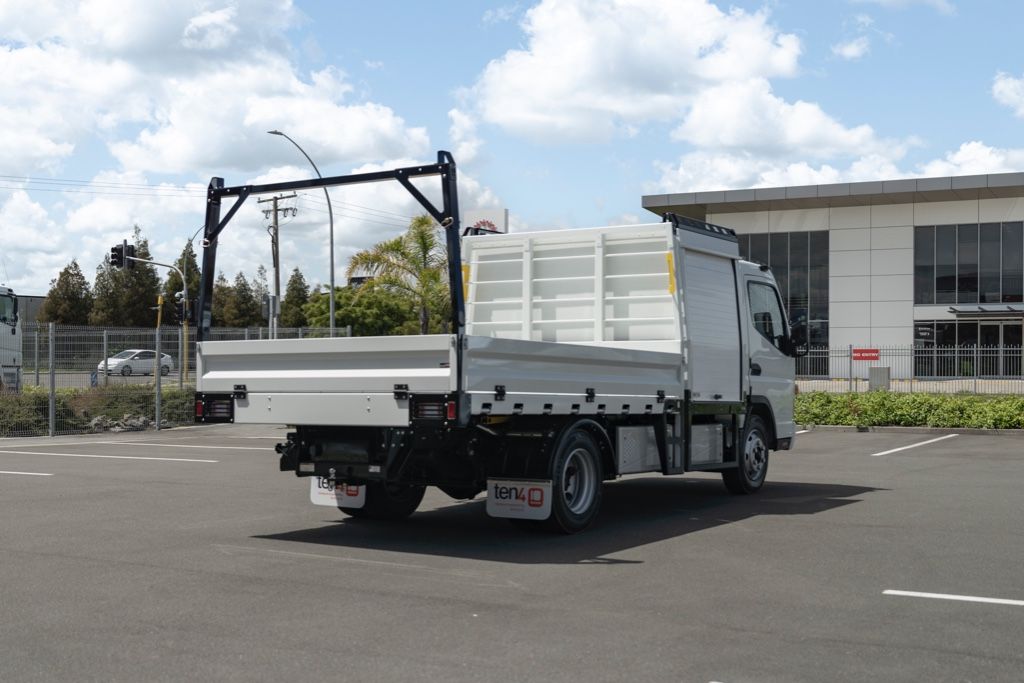

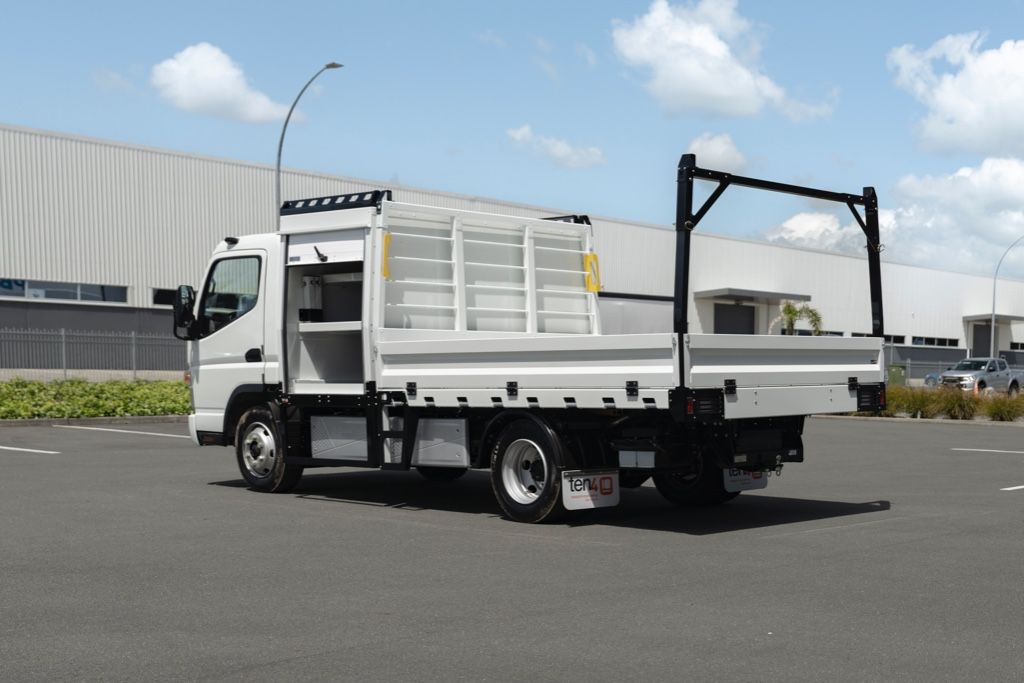

Tipping Deck:
• 3.2mtrs long x 2200mm wide (aprox overall measurements).
• 75 x 75 x 3mm Duragalv steel sub frame, mounted to truck.
• 100 x 50 x 3mm Duragalv steel tipper subframe with 2mm electrogalv steel cross members attached to sides of tipper subframe.
• 5.0mm aluminium deck with incorporated pressed combing rails & profile cut load anchorages.
• 25mm galvanized steel load anchorage rail – rated at 500kg each spacing.
• 4 x certified flush mounted deck lash rings – rated at 500kgs each.
• 3.0mm aluminium pressed sideboards & tailgate - 300mm high - hinged down complete with rubber buffer stoppers, anti-rattle drop latch washers & secondary spring lock assembly.
• Fixed rear corner posts.
• Profile cut headboard at 100mm above cab height with 800mm high 5mm aluminium lower infill plus upper securing bars.
• 3mm aluminium pressed mudguards with hinged hook back mudflaps.
• Rear bumper mounted slide out storage draw.
• Removable 3-piece H rack with storage in rear slide out storage draw.
• Profile cut access steps and grab handles for deck access both LH/RH sides.
• Electric operated underbody harsh hoist tip system (2 tonne lift capacity) with automated body lock and guides.
• Underbody deck props-single side operation, operated without reaching under the deck - painted red with safety labels.
• Brake roller test attachment points - 4 off painted yellow.
• Recessed taillights mounted in rear bumper to accommodate factory taillights with reflectors.
• Mounting provision for KAT supplied reversing camera.
• Installation of electrical mounting bracketry for cabling.
• Supply of all required LT400 certifications.
• Certified 2000kg tow bar with 7 pin electrical plug and 1”7/8 x 1” tow ball.
• Height specification at 500mm (ground to top of tow ball – loaded springs)
• 2 x 13mm holes with certified shackles.
Warranty:
6 years / 180,000km
eCanter must be serviced at an authorised FUSO Service Centre at the recommended servicing intervals. Refer to terms and conditions in the FUSO warranty booklet for full details.
2024 eCanter Electric Toolbox Tipper - 100% EV
Description
Canter 8 - 100% Electric
Power: 135KW
Torque: 390Nm
Battery: 81kWh lithium ion
Configuration: 4x2
Wheelbase: 3,400mm
Highlights:
81kWh lithium ion battery
100km-150km range (depending on the operating conditions)
80% charge in 45mins
Advanced safety features:
Active Emergency Braking System
Lane Departure Warning System
Electronic Stability Control
Workbox:
3.0mm aluminium work box, 1200mm long x 1450mm high x 2200mm wide, slam lock - Robinson roller shutter doors with two open lock positions with top door stoppers for finger crush prevention – (note: minimal tension on doors).
• 2 x full width shelves with 75mm upstand.
• Vertical center divider between the floor and 1st shelf of the workbox.
• Nonslip rubber matting on the floor and shelves.
• Fixed mounted roof racks protruding over cab roof with tie downs & beacon light mounting - mounted to correspond with H / rack & protection for cab light bar.
• Stainless steel protection capping on both LH/RH lower edge.
• 4 x LED strip lights.
• In cab warning light & buzzer showing roller doors open when handbrake released.
Tipping Deck:
• 3.2mtrs long x 2200mm wide (aprox overall measurements).
• 75 x 75 x 3mm Duragalv steel sub frame, mounted to truck.
• 100 x 50 x 3mm Duragalv steel tipper subframe with 2mm electrogalv steel cross members attached to sides of tipper subframe.
• 5.0mm aluminium deck with incorporated pressed combing rails & profile cut load anchorages.
• 25mm galvanized steel load anchorage rail – rated at 500kg each spacing.
• 4 x certified flush mounted deck lash rings – rated at 500kgs each.
• 3.0mm aluminium pressed sideboards & tailgate - 300mm high - hinged down complete with rubber buffer stoppers, anti-rattle drop latch washers & secondary spring lock assembly.
• Fixed rear corner posts.
• Profile cut headboard at 100mm above cab height with 800mm high 5mm aluminium lower infill plus upper securing bars.
• 3mm aluminium pressed mudguards with hinged hook back mudflaps.
• Rear bumper mounted slide out storage draw.
• Removable 3-piece H rack with storage in rear slide out storage draw.
• Profile cut access steps and grab handles for deck access both LH/RH sides.
• Electric operated underbody harsh hoist tip system (2 tonne lift capacity) with automated body lock and guides.
• Underbody deck props-single side operation, operated without reaching under the deck - painted red with safety labels.
• Brake roller test attachment points - 4 off painted yellow.
• Recessed taillights mounted in rear bumper to accommodate factory taillights with reflectors.
• Mounting provision for KAT supplied reversing camera.
• Installation of electrical mounting bracketry for cabling.
• Supply of all required LT400 certifications.
• Certified 2000kg tow bar with 7 pin electrical plug and 1”7/8 x 1” tow ball.
• Height specification at 500mm (ground to top of tow ball – loaded springs)
• 2 x 13mm holes with certified shackles.
Warranty:
6 years / 180,000km
eCanter must be serviced at an authorised FUSO Service Centre at the recommended servicing intervals. Refer to terms and conditions in the FUSO warranty booklet for full details.
We make every attempt to ensure that the most current price is displayed but technology does not always keep up, please contact us for final pricing. Photos are for illustration purposes only, the actual vehicle may slightly differ.
